Textured and Perforated HDPE Honeycomb Plastic Geocell Gravel Grid for Road Construction Stabilization

Textured and Perforated HDPE Honeycomb Plastic Geocell Gravel Grid for Road Construction Stabilization

1.Geocell Product Introduction

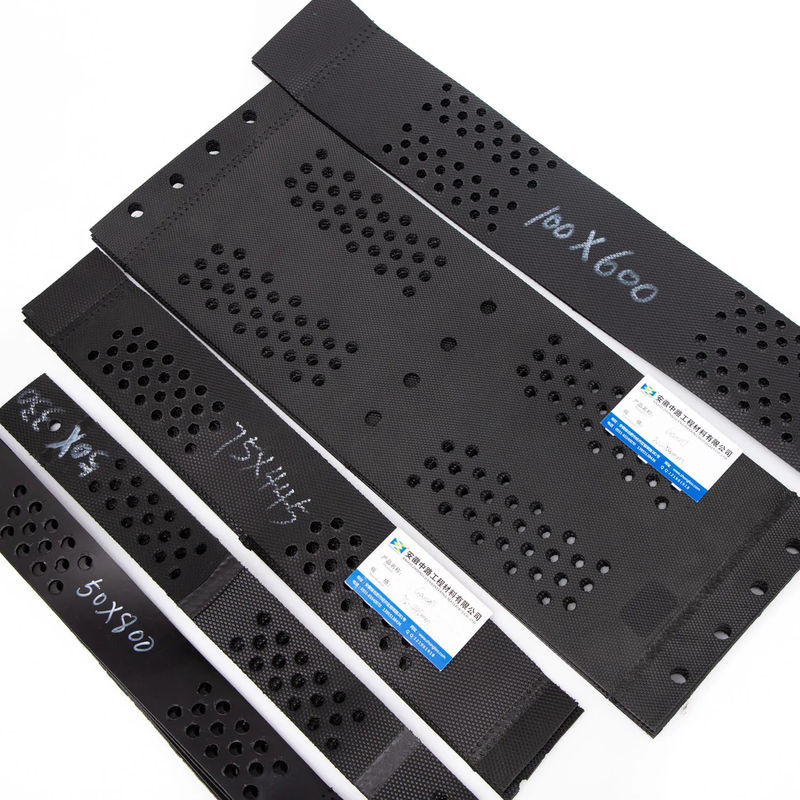

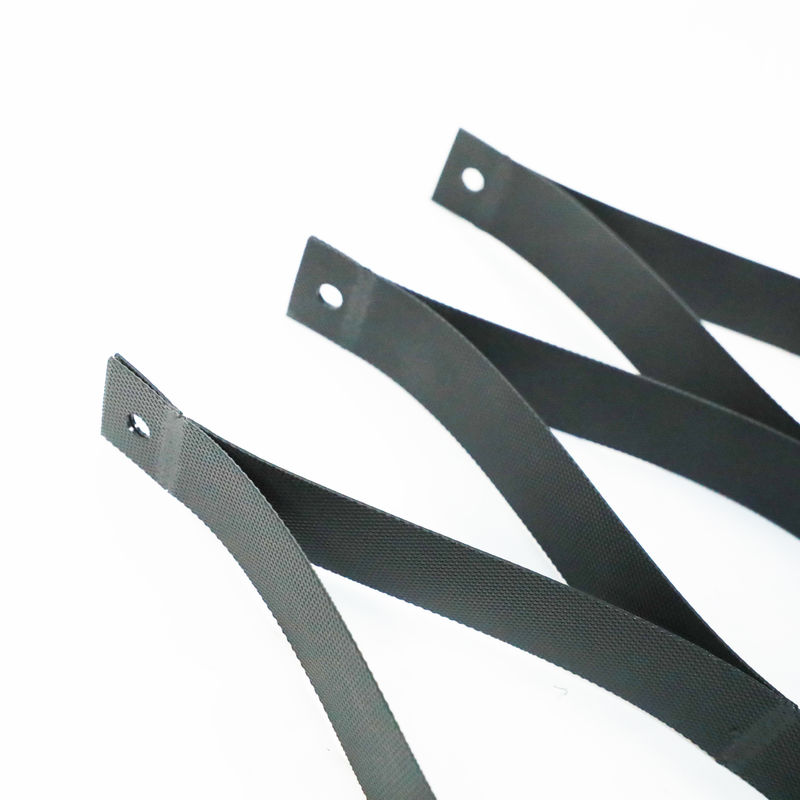

Geocell is a three-dimensional mesh structure made of long strips of plastic material by ultrasonic welding. When unfolded, it is a three-dimensional mesh structure, and sometimes it can be perforated according to customer needs. The height, weld distance, and plate thickness of the geocell have a significant impact on its engineering performance; in engineering, different types of geocells can form cushions with different bonding strengths, reinforcement strengths, and thicknesses. These cushions can be laid in the required positions according to engineering needs and are used to reinforce the roadbed, slopes, protection, and retaining walls of highways and railways. The width of the strip is the height of the geocell. When the geocell is not unfolded, the distance between the two welds on the same side of the plate is the weld distance.

2.Geocell Technical Parameters

3.Geocell Applications:

1. It protects the soil from wind and rain erosion before grass grows;

2. It keeps grass seeds stably distributed on the slope to avoid erosion;

3. The black mat can fully absorb heat energy, increase ground moisture, promote seed germination, and extend the growth cycle of plants;

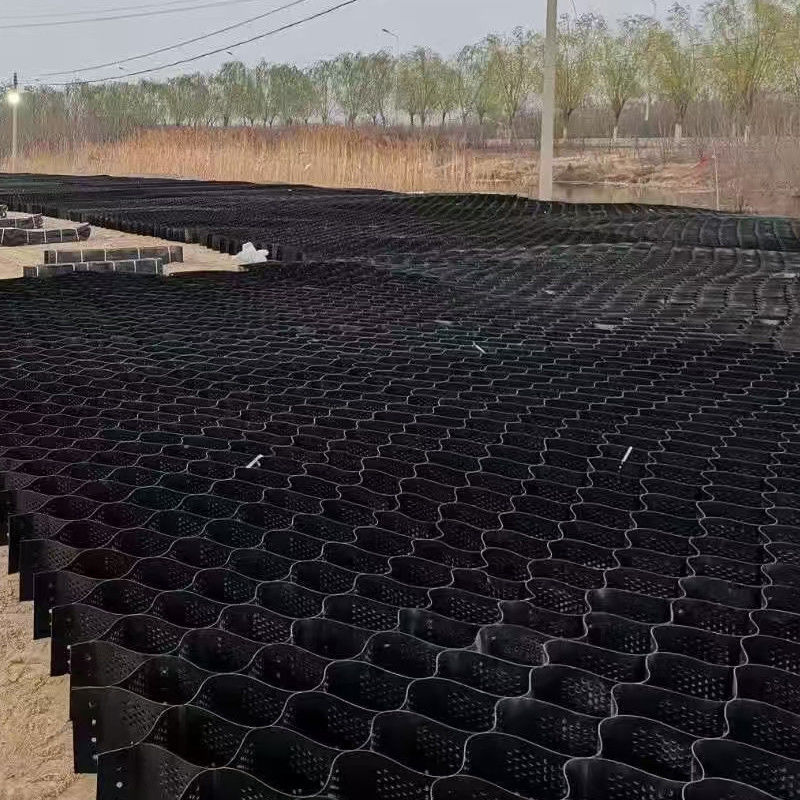

4. Geocells are a restraint system that performs better than traditional gravel sections. It provides a convenient technology for channel construction on soft soil foundations and is not adversely affected by wet weather conditions. Geocells can also be used to reinforce paved areas.

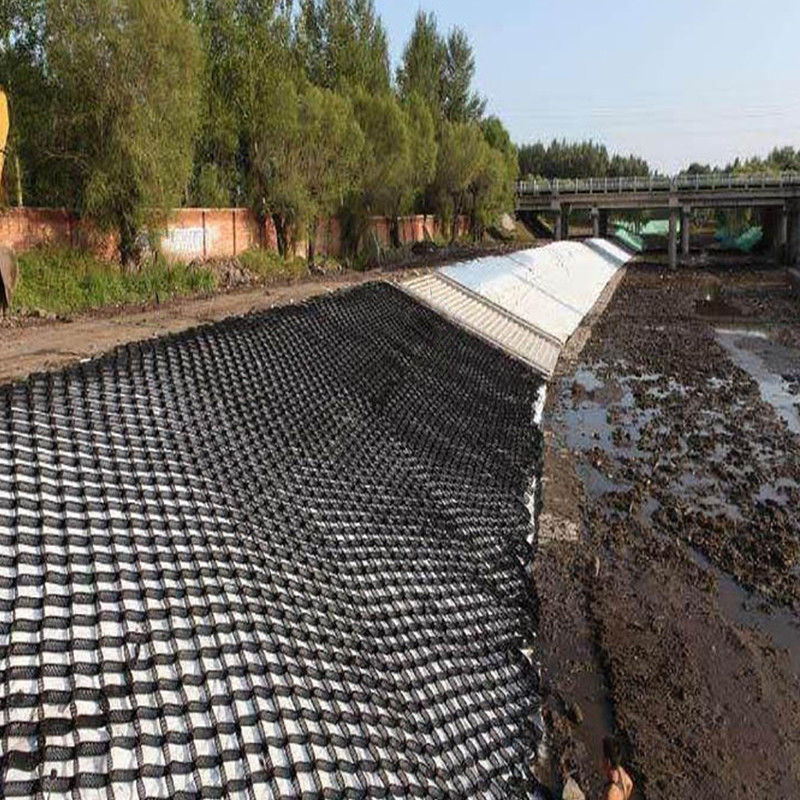

5. Slope protection.In slope protection applications, geocells can be filled with angular rocks, concrete or vegetation soil. Geocells can constrain the filling material to form a stable protective layer to prevent slope erosion. Geocells are a flexible system that can fit the shape of the slope and reduce preparation time. When filled with vegetation soil or rock, the system is permeable, thereby reducing water loss.

4.Geocell Main Feature
1.Light material, wear resistance, stable chemical performance, light and oxygen aging resistance, acid and alkali resistance,suitable for different soil and desert and other soil conditions.
2.Higher lateral restraint and anti-skid, anti-deformation and effective enhancement of subgrade bearing capacity and decentralized load.

3.Geotechnical dimensions such as height and welding distance of geocell can be changed to meet different engineering needs.
4. Geocell has Flexibility, small transport volume, convenient connection, make construction more convenient.
